High Pressure Winch & Netdrums
Hagglunds Crane Winch
Product no.: 1405
| Quantity in stock | 1 |
| Pull 1. Layer (Kg) | 20000 |
| Brakes | Double Disk |
| Number of drums | 1 |
| Height | 1850 |
| Length | 1870 |
| Width | 2300 |
| Weight (kg) | 5500 |
| Motor displacement (Ccm) | 2 x 16.34 liter |
| Drum length mm | 545 |
| Drum dia. mm | 1550 |
| Core dia. mm | 1090 |
| Total length incl. motor(s) mm | 1870 |
| Storage location | 151 |
| Engine Type | 2 x Hagglunds Viking |
Description

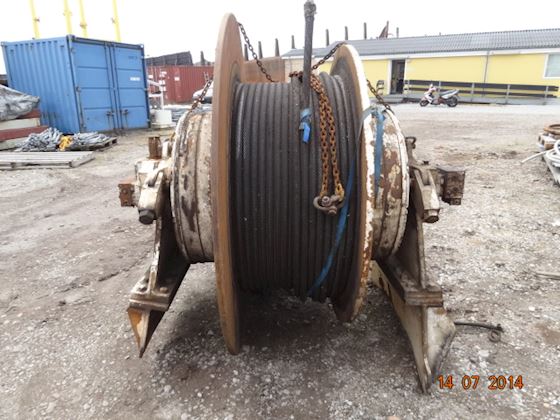

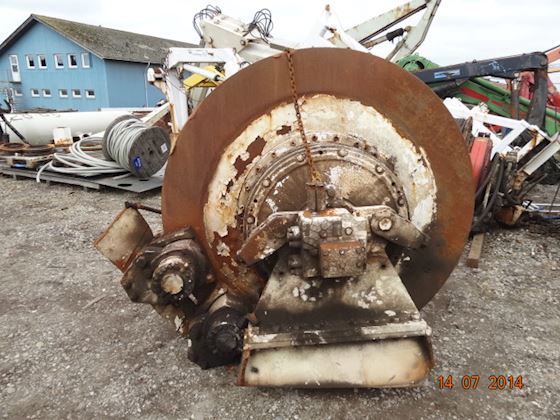

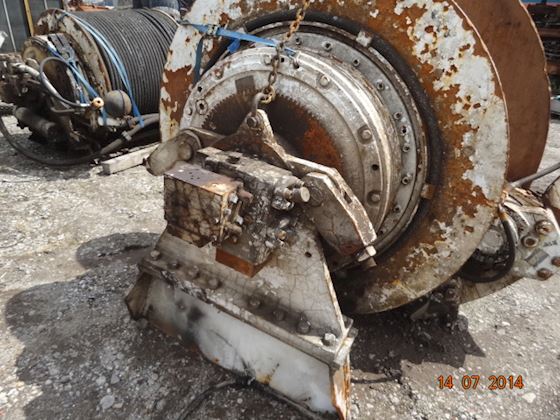

Single drum crane winch fitted with 2 x Hagglund Viking 16.34 litre motors 63 series, each with 2 speed valve. Winch made with double Hagglunds disk brake system. Can be used for other applications then crane. Winch in operational condition.
